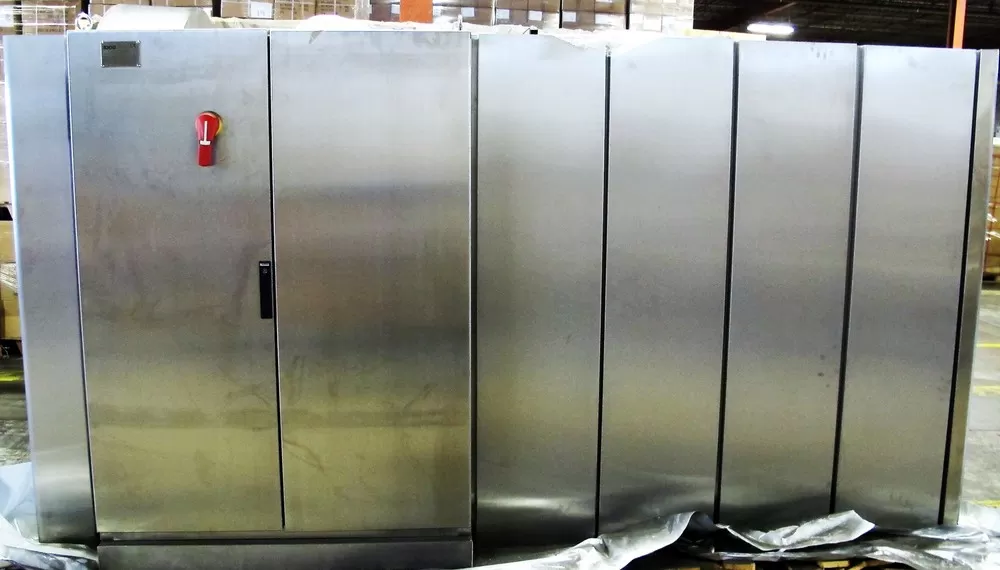

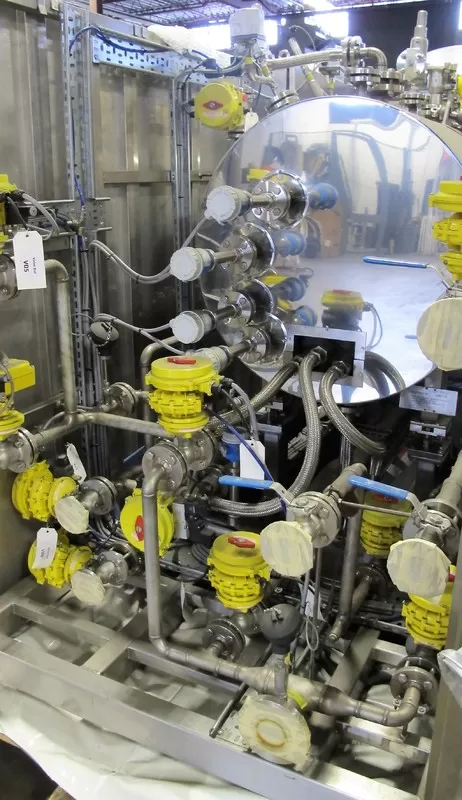

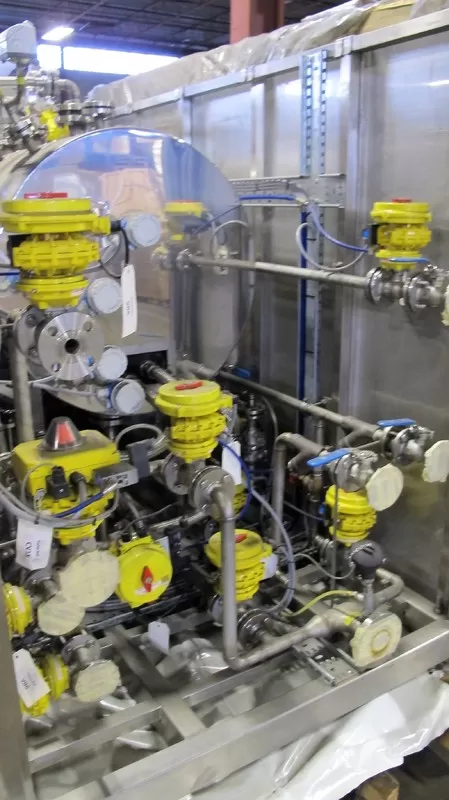

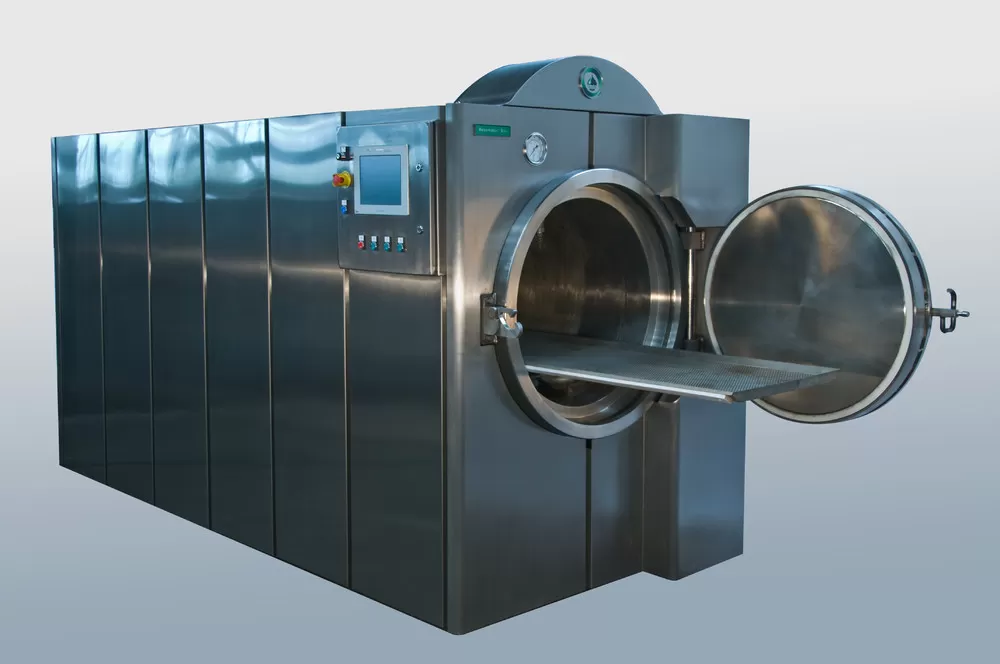

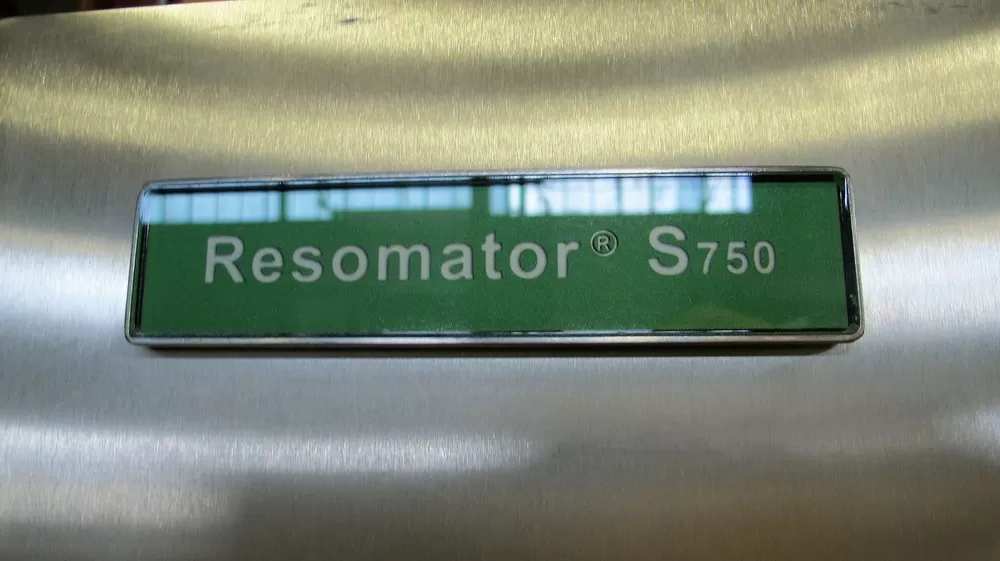

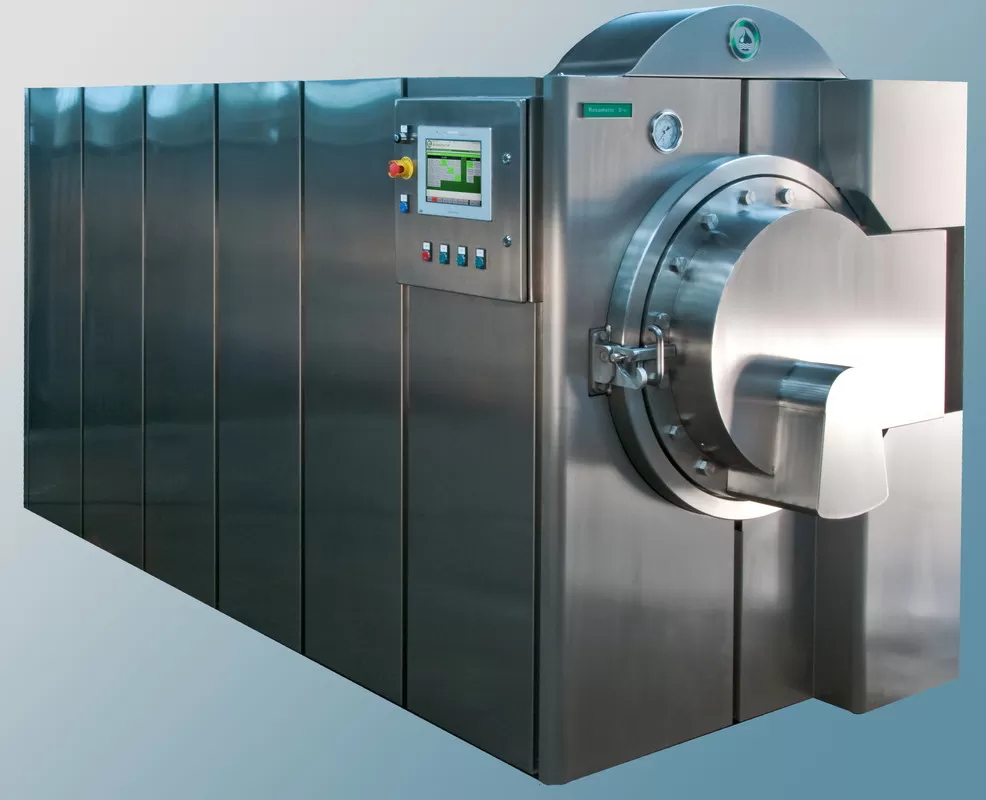

Resomator S750 High Pressure Alkaline Hydrolysis System

Model Number: S750

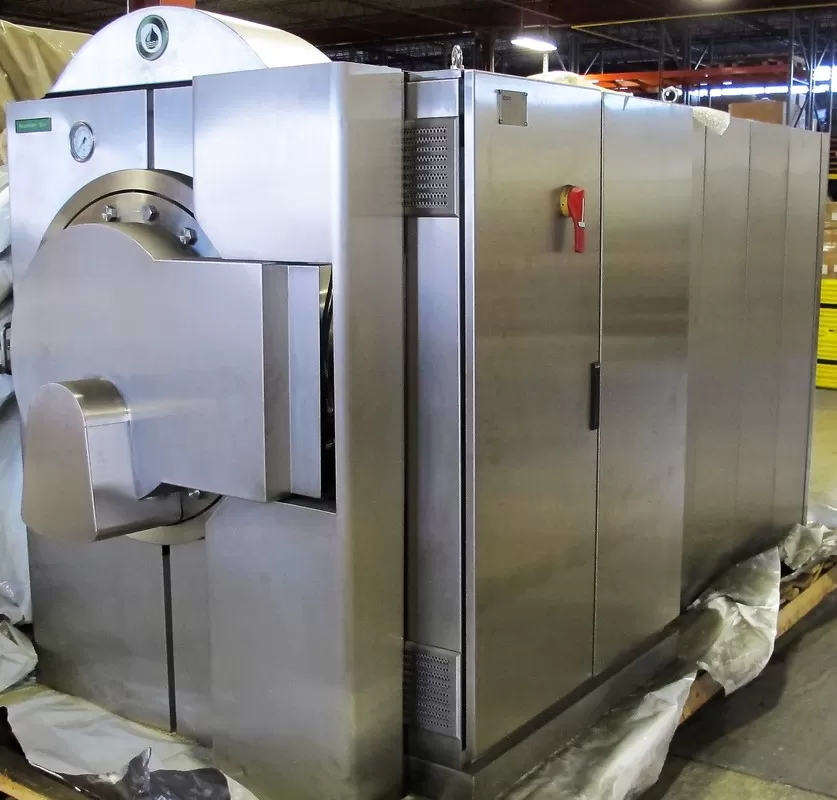

Overall Resomator Footprint: 3070mm (120") x 1280mm (50")
nominal (1445mm (57") widest point) x
1940mm (76") tall
Approximate dry weight (empty): 2500Kg (5500 lbs)
Approximate maximum weight: 3300Kg (7275 lbs)
Internal Chamber Length: 2050mm (80")
Internal Chamber Diameter: 746mm (29-1/2")
Maximum Cadaver Weight: 180Kg (400lbs)
Maximum Internal Temperature: 180°C (355F) (May be limited by Pressure)

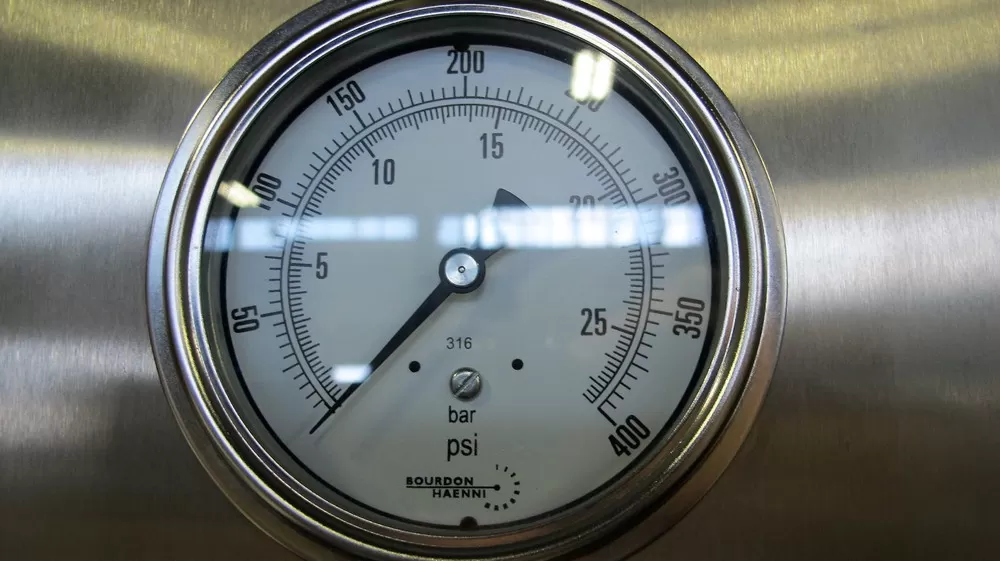

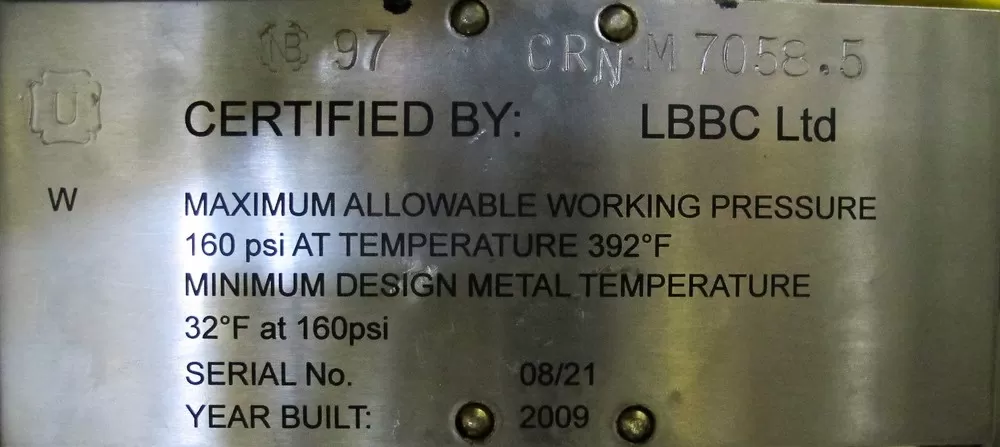

Maximum Operating Pressure: 10 Bar (145 psi)
Safety Valve Lift Pressure: 11 Bar (160 psi)

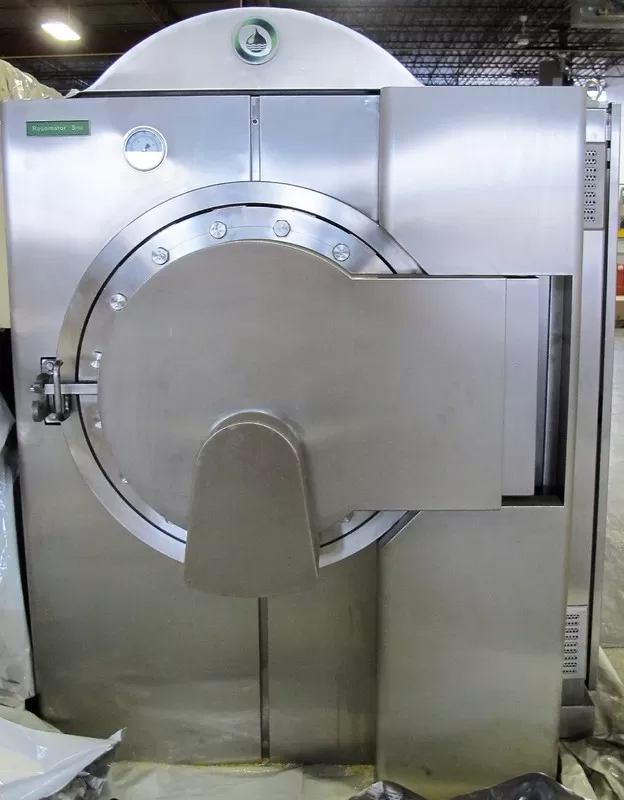

Door Lock Mechanism: QuicklockTM pneumatic actuation
Heating Mechanism: Internal coil
Heating Medium: Steam

Cooling Mechanism: Internal coil
Cooling Medium: Cold water
Materials of Construction:
Wetted components: 316L Stainless Steel
Frame: 304 Stainless Steel
Recommended* Utility Requirements

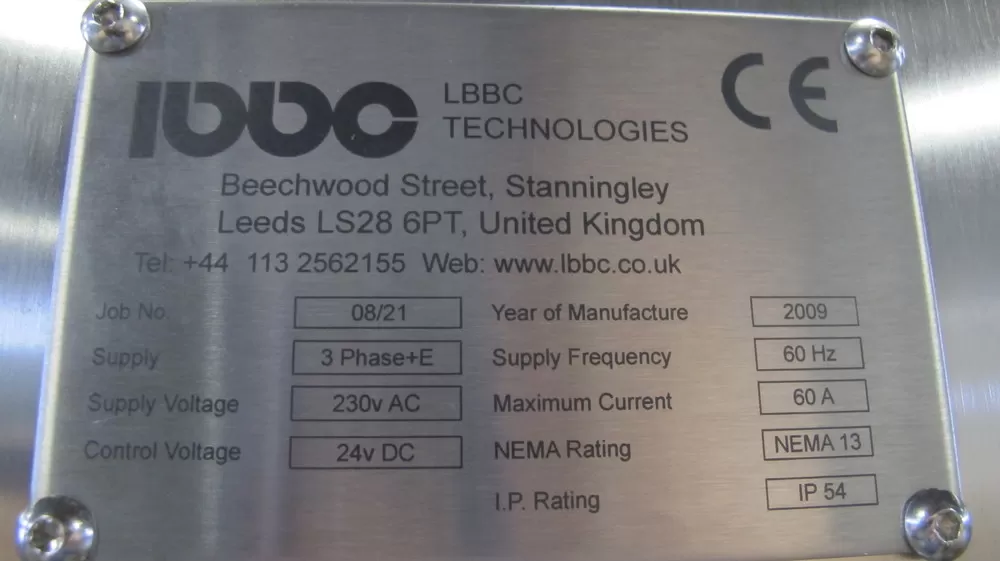

Electricity: 230V, 3 Phase, 60 Amp
Steam: 300 Kg/hr @ 14 bar
(660 lbs/hr @ 200psi)
Water: 25mm connection, 3 - 6 bar
(1" connection, 40- 90 psi)
Vent: 75mm (3") with fan extraction to
atmosphere
Drain: 75mm (3") open drain with air
extraction
Modem: Dedicated direct dial phone line for
remote diagnostics
